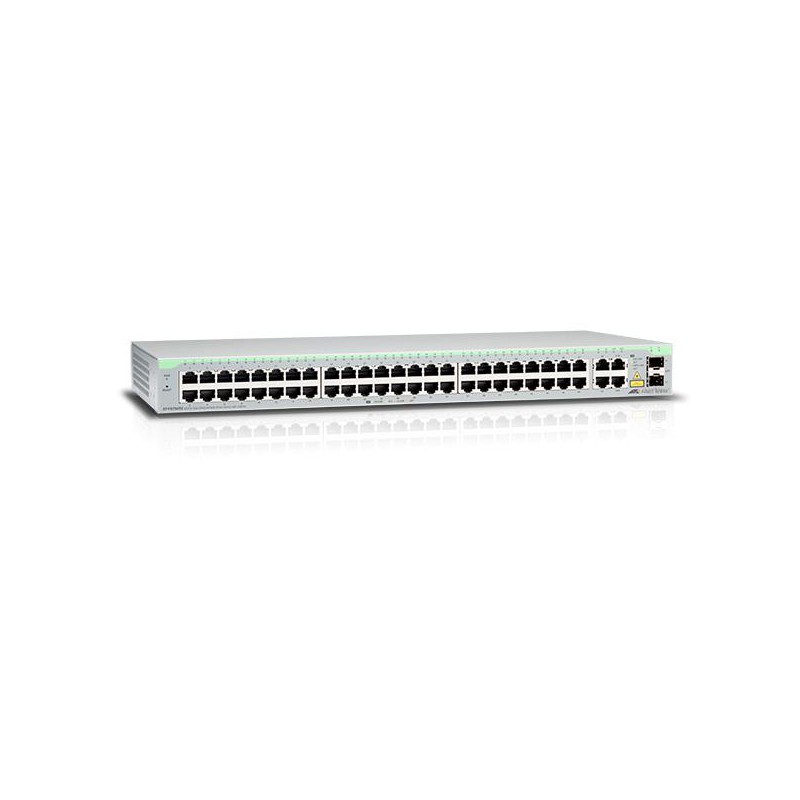

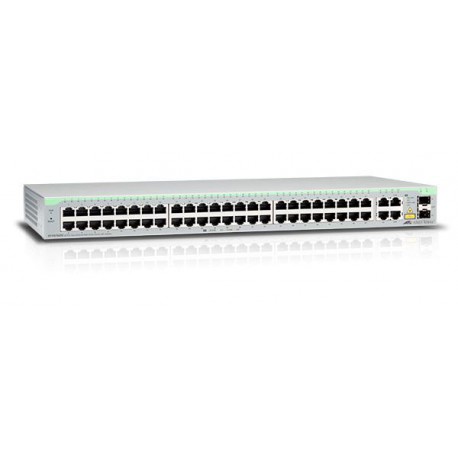

Allied Tele.48x10/100 smart 2xG+2xSFP AT-FS750/52

AT-FS750/52-50
48 Port Fast Ethernet WebSmart Switch with 4 uplink ports (2 x 10/100/1000T and 2 x SFP-10/100/1000T Combo ports)

Overview

These advanced Allied Telesis WebSmart switches integrate the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective, yet secure and reliable, solution for users to integrate management at the edge of their networks. With user-friendly web-based management, the FS750 Series is an ideal option for integrating simple management and security into a network solution.

Product Contents

*Switch unit
*Rack-mount brackets and screws
*Power cord
*Rubber feet

Technical Specs

Performance
*14,880pps for 10Mbps Ethernet
*148,800pps for 100Mbps Ethernet
*1,488,000pps for 1000Mbps Ethernet
*MAC addresses: 8,000
*VLAN IDs available: 4,000
*Max VLANs: 256
*Packet buffer: 4.1 Mbit
*DRAM: 128MB
*Flash: 16MB
Interface Connections
*10/100TX
*10/100/1000T: RJ-45
*SFP: 100FX, 1000T, 1000SX or 1000LX
Environmental Compliance
*RoHS
*Eu-RoHS
*China RoHS
*WEEE
MTBF
*263,000 hours
*Telcordia SR-332
Environmental Specifications
*Operating temperature 0°C to 40 °C
*Non-operating temperature -25°C to 70°C
*Operating humidity: 5% to 90% non-condensing
*Storage humidity: 5% to 95% non-condensing
*Vibration: IEC 68-2-36
*Shock: IEC 68-2-29
*Drop: IEC 68-2-32
*Flammability: UL94V-0
Technical Specifications
*Wall-mount or desktop
*All units come with wall /19 in rack-mount brackets
Standards and Compliance
*IEEE 802.3 CSMA/CD IEEE 802.3i 10T
*IEEE 802.3u 100TX
*IEEE 802.3z 1000SX/LX
*IEEE 802.3z/ab 1000T
*IEEE 802.3x Flow control
*IEEE 802.1p Prioritization (four queues)
*IEEE 802.1x Authentication
*IEEE 802.1x Local authentication server (MD5)
*IEEE 802.1x Remote authentication through RADIUS
*IEEE 802.1x Dynamic VLAN assignment
*IEEE 802.1x MAC-based authentication
*IEEE 802.1x RADIUS
*IEEE 802.1d Bridging
*IEEE 802.3ad Link aggregation
*IEEE 802.3ad Port trunking and LACP
*IEEE 802.1Q Tagged VLAN
*IEEE 802.1d Spanning-Tree
*IEEE 802.1w Rapid Spanning-Tree
*IEEE 802.1s Multiple Spanning-Tree
Electrical/Mechanical Approvals
*UL60950-1 2nd edition (UL)
*FCC/EN55022/CISPR 22 Class A
*VCCI Class A
*C-Tick
*EN60950 (TUV)
*EN55024
*CE Mark
*CSA / cUL
