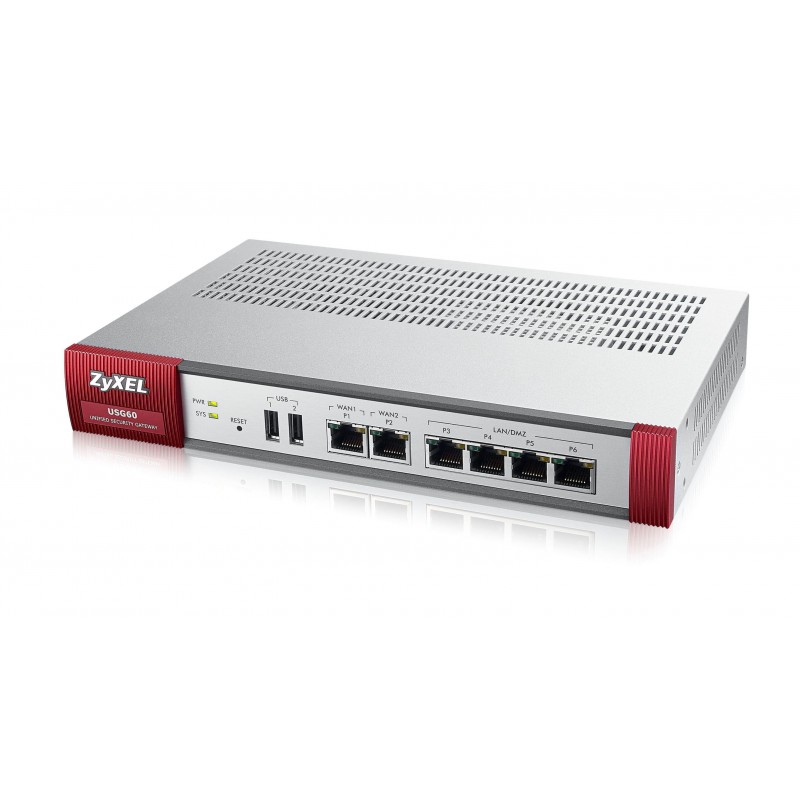

ZyXEL USG60 UTM BUNDLE

ZyXEL USG60 UTM BUNDLE

OVERVIEW
Security UTM solution: Firewall, VPN: 20x IPSec/ 20x SSL (5 default), 6x 1Gbps (4x LAN/DMZ, 2x WAN), 2x USB, Fanless, Wireless Controller for up to 18 (default 2) WAC6xxx/NWA3000-N/5000-N series of APs, included 1-year licenses of IDP, Antivir (Kaspersky), Antispam (Cyren), Content Filtering (Cyren), rack mounted

SPECIFICATIONS
HARDWARE SPECIFICATIONS
10/100/1000 Mbps RJ-45 ports
• 4 x LAN/DMZ, 2 x WAN

USB ports
• 2

Console port
• Yes (DB9)

Rack-mountable
• Yes

SYSTEM CAPACITY & PERFORMANCE
SPI firewall throughput (Mbps)
• 1,000

VPN throughput (Mbps)
• 180

IDP throughput (Mbps)
• 120

AV throughput (Mbps)
• 90

UTM throughput (AV and IDP)
• 90

Unlimited user licenses
• Yes

Max. TCP concurrent sessions
• 40,000

New TCP session rate
• 3,000

Max. UTM (AV & IDP) concurrent sessions
• 40,000

Max. concurrent IPsec VPN tunnels
• 20

Max. concurrent SSL VPN users
• 12

Included SSL VPN user no
• 2

Customizable zones
• Yes

IPv6 support
• Yes

VLAN interface
• 16

WLAN MANAGEMENT
AP Controller (APC) ver
• 1.0

Managed AP number (default/max.)
• 2/10

KEY SOFTWARE FEATURES
Virtual Private Network (VPN)
• Yes (IPSec, SSL, L2TP over IPSec)

Firewall
• Yes

Anti-Virus (AV)
• Yes

Anti-spam
• Yes

Content Filtering (CF)
• Yes

Application intelligence and optimization
• Yes

Intrusion Detection and Prevention (IDP)
• Yes

Single Sign-On (SSO)
• Yes

POWER REQUIREMENTS
Power input
• 12 V DC, 3.0 A max.

Max. power consumption (watt)
• 19.0

OTHERS
MTBF (hr)
• 815,463.9

PHYSICAL SPECIFICATIONS
Item dimensions (WxDxH)
• 242 x 175 x 36 mm

Item weight
• 1.25 kg
