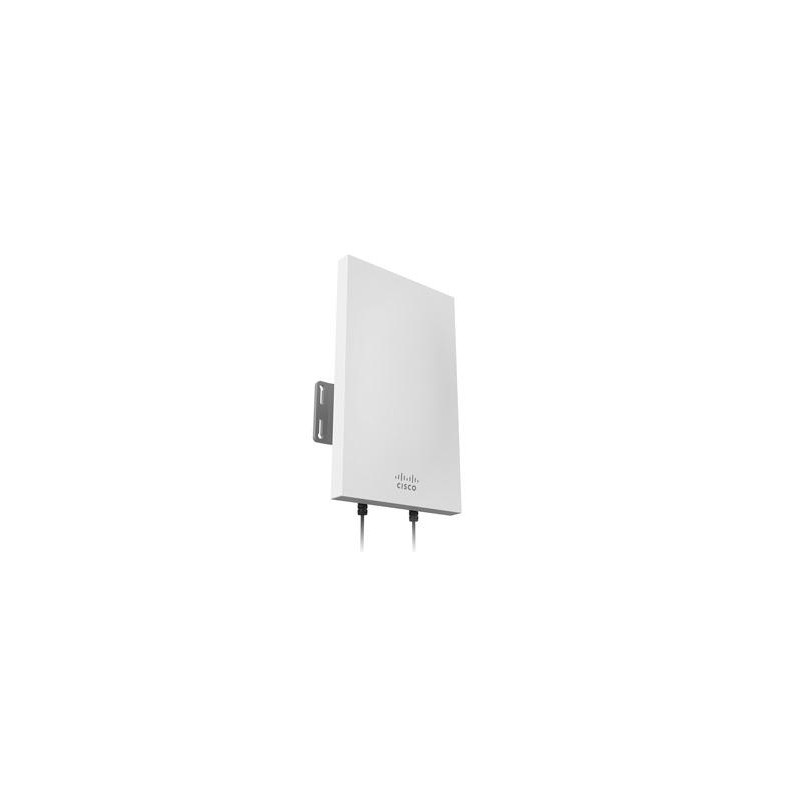

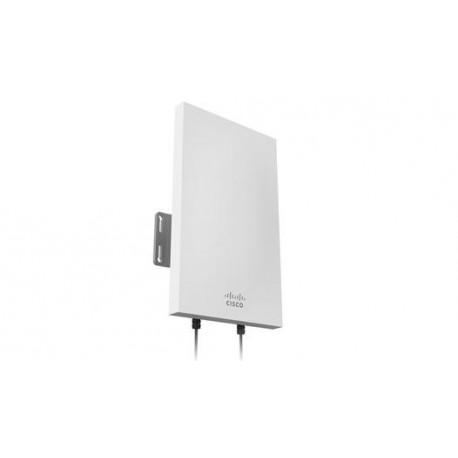

Cisco Meraki Dual Band Sector Antenna

Electrical
· Antenna type: panel
· Frequency range: 2.400 - 2.500 GHz, 5.150 - 5.875 GHz
· Gain: 9 / 12 dBi
· Polarization: linear, vertical / horizontal
· Half power beamwidth / horizontal: 86° / 65°
· Half power beamwidth / vertical: 34° / 18°
Physical & Environmental
· Dimensions: 9.1" x 5.5" x 1.9" (230 mm x 140 mm x 48 mm)
· Weight: 1.4 lbs (630 g)
· Material: UV resistant plastic
· Temperature: -40° F to 158° F (-40° C to 70° C)
· Humidity: 5 to 95% non-condensing
· Connector: 2 x N-type
Mounting
· Mounting hardware and cables included
· Mounts to walls, poles, or AP directly
Cables
· 12 inch cables with two N-type connectors included
Regulatory
· Certified for use with the MR84
