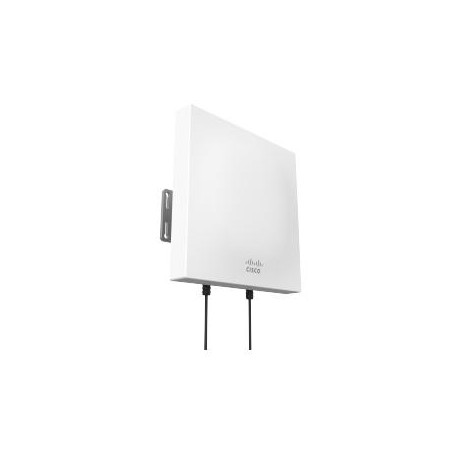

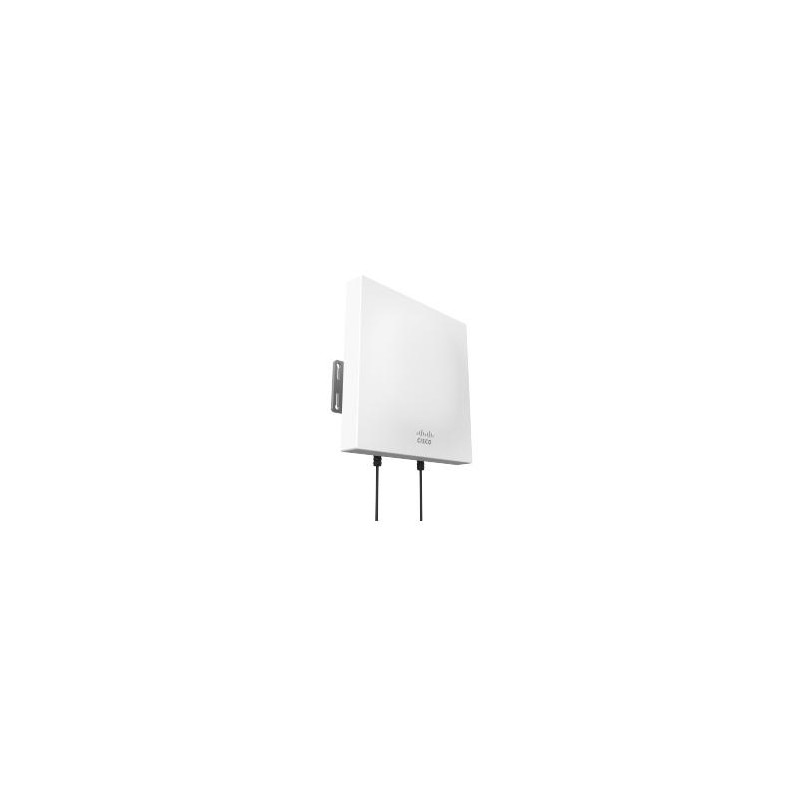

Cisco Meraki Dual Band Patch Antenna

Electrical
· Antenna type: panel
· Frequency range: 2.400 - 2.500 GHz, 5.150 - 5.850 GHz
· Gain: 8 / 6.5 dBi
· Polarization: vertical / horizontal
· Half power bandwidth / horizontal: 70
Physical & Environmental
· Dimensions: 7.1" x 7.1" x 1.6" (180 mm x 180 mm x 1.8 mm)
· Weight: 1.1 lbs (512 g)
· Material: UV resistant plastic
· Temperature: -40 F to 158 F (-40 C to 70 C)
· Connector: 2 x N-type
Mounting
· Mounting hardware included
· Mounts to walls or poles
Cables
· Cables with two N-type connectors included
Regulatory
· Certified for use with the MR66, MR72, and MR84
