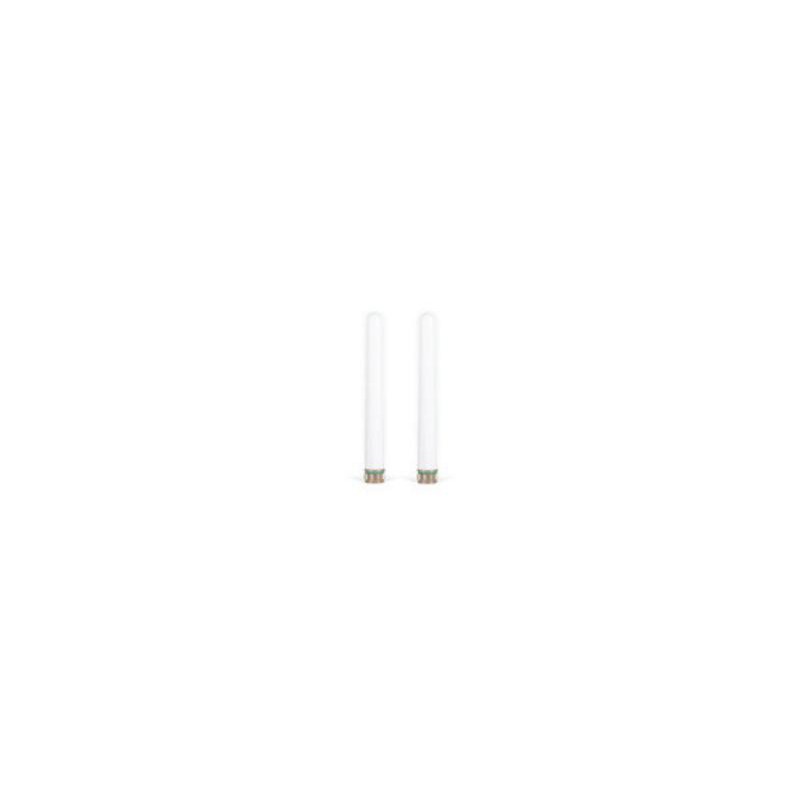

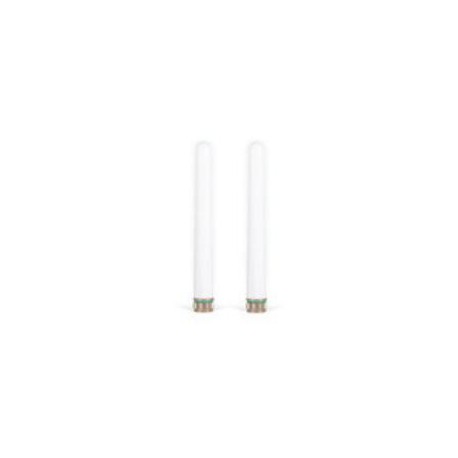

Cisco Meraki Dual-band Omni Antennas

Electrical
• Antenna type: omni-directional
• Frequency range: (2 GHz): 2.400 - 2.500 ghz
• Frequency range: (5 GHz): 5.150 - 5.875 ghz
• Gain: 4 dbi
• Gain: 7 dbi
• Polarization: vertical (linear)
• Half power bandwidth / horizontal: 360°
• Half power bandwidth / vertical: 45°
Physical & Environmental
• Dimensions: 1.0" x 7.1" (25 mm x 180 mm)
• Weight: 0.17 lbs (79 g)
• Material: ABS plastic
• Temperature: -40° F to 158° F (-40° C to 70° C)
• Connector: N-type
Mounting
• Directly to unit (no cable required)
Box Contents
• Two Cisco Meraki MA-ANT-20 antennas
Regulatory
• Certified for use with the MR58, MR62, MR66, and MR72
