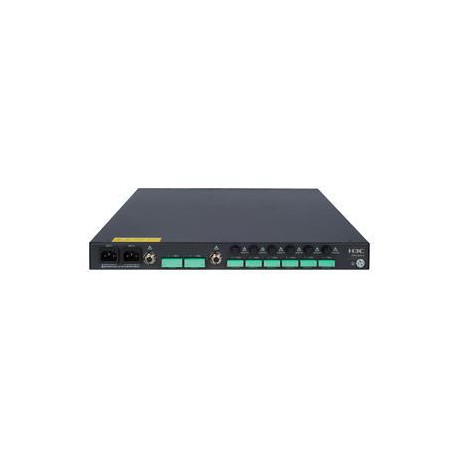

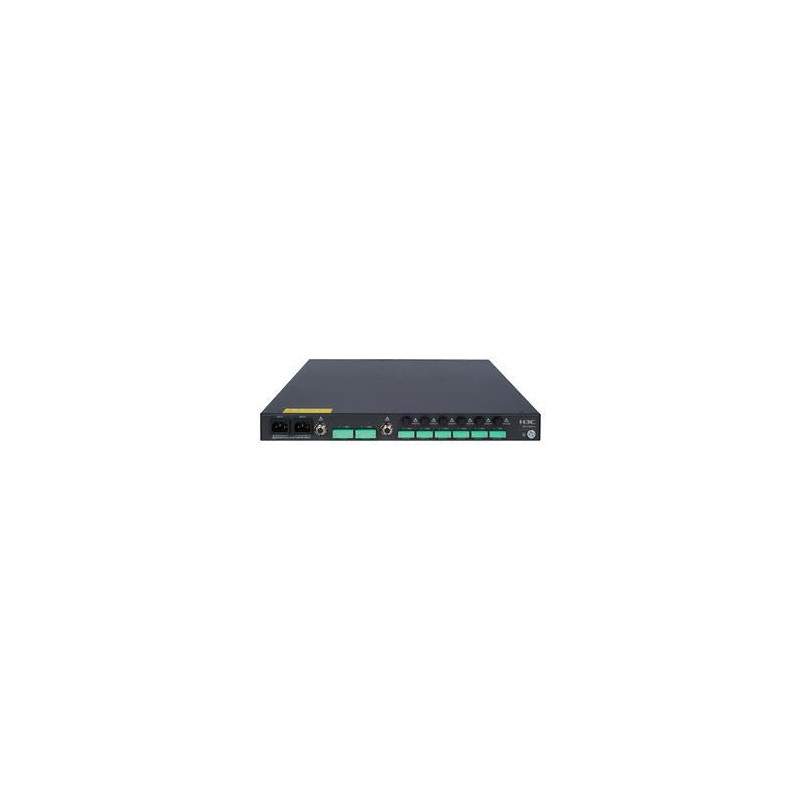

HPE RPS1600 Redundant Power System

HP RPS1600 Redundant Power System (JG136A)

A-RPS1600 is a cost effective power redundancy solution which can support up to 8 active devices and up to 3200W power per system, 1400W power per port to fixed port switches

Ports:
8 redundant power supply ports
Restrictions: two -56V/25A DC(PoE); six -56V/8A DC(non-PoE)

Physical characteristics:
Dimensions: 15.63(d) x 17.32(w) x 1.74(h) in. (39.7 x 44 x 4.42 cm)
Weight: 14.11 lb. (6.4 kg)
Full configuration weight: 16.75 lb. (7.6 kg)

Electrical characteristics:
Voltage: 100-120/200-240 VAC
Current: 30/60 A
Idle power: 38 W
Maximum power rating: 3550 W
RPS power: 3200 W
PoE power: 2800 W
RPS: -55 V
PoE: -55 V
Frequency: 50/60 Hz

Notes: Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
With one RPS1600 Power Supply, the PRS1600 Redundant Power System can provide 1600W power output; With two PRS1600 Power Supplies, the output power is 3200W.

Safety
• CE Labeled
• UL 60950-1
• IEC 60950-1
• ICES-003
• FCC Part 15, Subpart B
• EU RoHS Compliant
• EN 60950-1/A11
• C-Tick
• VCCI Class A
• ROHS Compliance
• EN 300386

Compatible products
• HP 5120 EI Switch Series
• HP 5500 SI Switch Series
• HP 5500 EI Switch Series
• HP 3610 Switch Series
• HP 3600 EI Switch Series
• HP 3600 SI Switch Series
• HP 3100 EI Switch Series
• HP 5120 SI Switch Series
• HP 5800 Switch Series
• HP 5820 Switch Series
