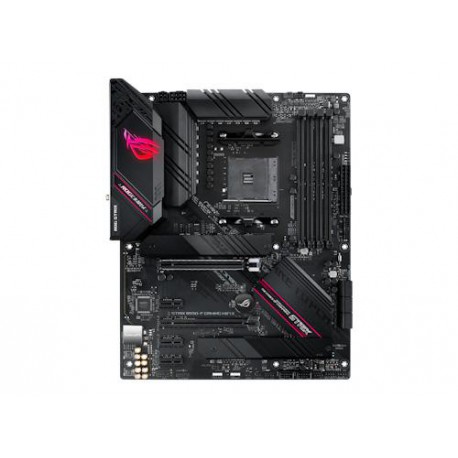

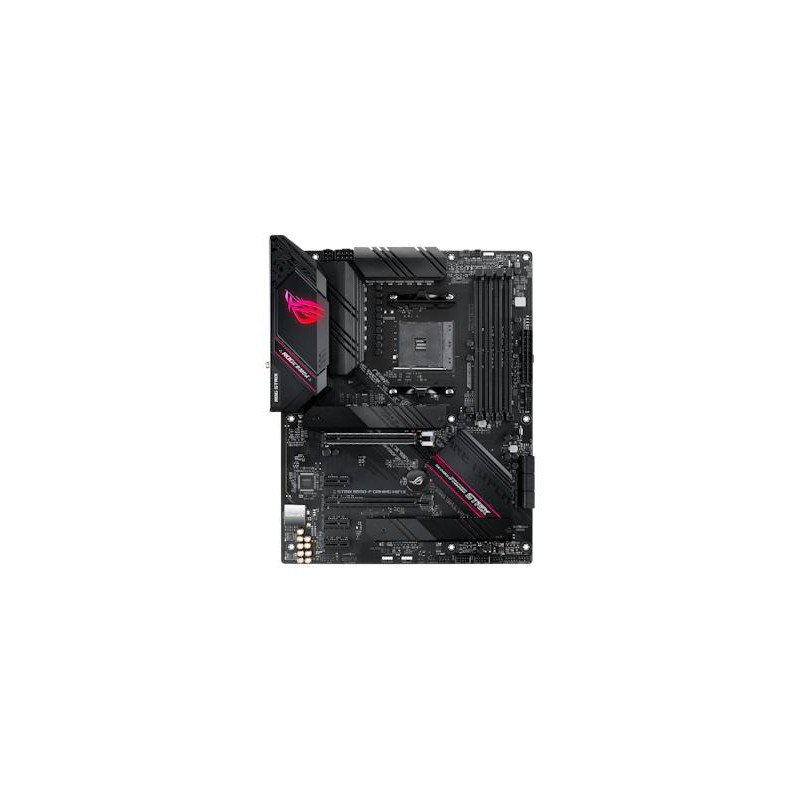

ASUS ROG STRIX B550-F GAMING WI-FI II/AM4/ATX

Chipset: B550

Rozměrový formát: ATX (30.5cm x 24.4cm)
Podpora pro procesory: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series

Pozice na paměti: 4 x DIMM,DDR4
Podpora pro paměti:
*AMD Ryzen 5000 and 3000 Series Desktop Procesors
*DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz
*AMD Ryzen 5000 and 4000 G-Series Processors
*DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz,
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: ECC

Zvuková karta: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Síťová karta:
*1 x Intel I225-V 2.5Gb Ethernet
*WI-FI 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
*Bluetooth v5.2

Rozšiřující sloty:
*1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)
*1 x PCIe 3.0 x16 slot (supports x4 mode)
*3 x PCIe 3.0 x1 slots

RAID řadič: RAID 0, 1, 10

SATA: 6 x SATA 6Gb/s ports

M.2: 2 x M.2 slots (Key M)

USB:
*Interní:
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Externí:
*2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
*4 x USB 3.2 Gen 1 ports (4 x Type-A)
*2 x USB 2.0 ports

Interní porty:
*Fan and cooling related
*1 x 4-Pin AIO_Pump header
*1 x 4-Pin CPU fan header
*1 x 4-Pin CPU_OPT fan header
*3 x 4-Pin Chassis fan headers
*Power related
*1 x 24-pin main power connector
*1 x 8-pin +12V power connector
*1 x 4-pin +12V power connector
*Storage related
*2 x M.2 slots (Key M)
*6 x SATA 6Gb/s ports
*USB ports
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Miscellaneous
*1 x Addressable Gen 2 header
*2 x AURA RGB headers
*1 x Clear CMOS header
*1 x Front panel audio header (AAFP)
*1 x 20-3 pin System Panel header with Chassis intrude function
*1 x Thermal sensor header
*1 x Thunderbolt header

Externí porty:
*2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
*4 x USB 3.2 Gen 1 ports (4 x Type-A)
*2 x USB 2.0 ports
*1 x Wi-Fi Modul
*1 x DisplayPort
*1 x HDMI port
*1 x Intel I225-V 2.5G Ethernet
*1 x Optical S/PDIF out
*5 x Audio jacks
*1 x BIOS FlashBack button

BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
