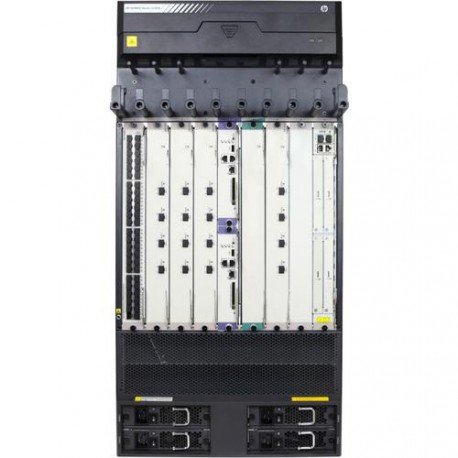

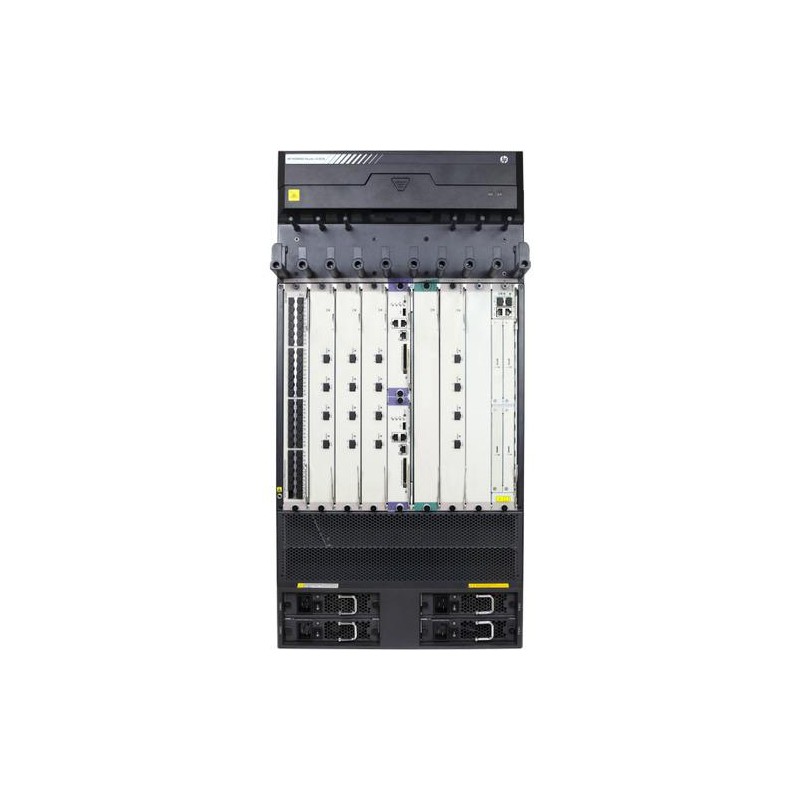

HPE HSR6808 Router Chassis
20RU high-performance distributed architecture router platform. Supports 2 MPUs in 1+1 redundancy and up to 8 service line cards. Delivers up to 2.048 Tbps backplane bandwidth and 420 Mpps throughput.
Ports
*(8) SAP slots or (16) HIM slots or (32) MIM slots, or a combination
Throughput
*up to 420 Mpps
Routing table size
*4000000 entries (IPv4)
*2000000 entries (IPv6)
Input voltage
*100 - 240 VAC, rated
*-48 to -60 VDC, rated (depending on power supply chosen)
Power consumption
*1816 W (maximum)
Product dimensions (H x W x D)
*17.17 x 20.08 x 34.88 in
Weight
*118.17 lb
