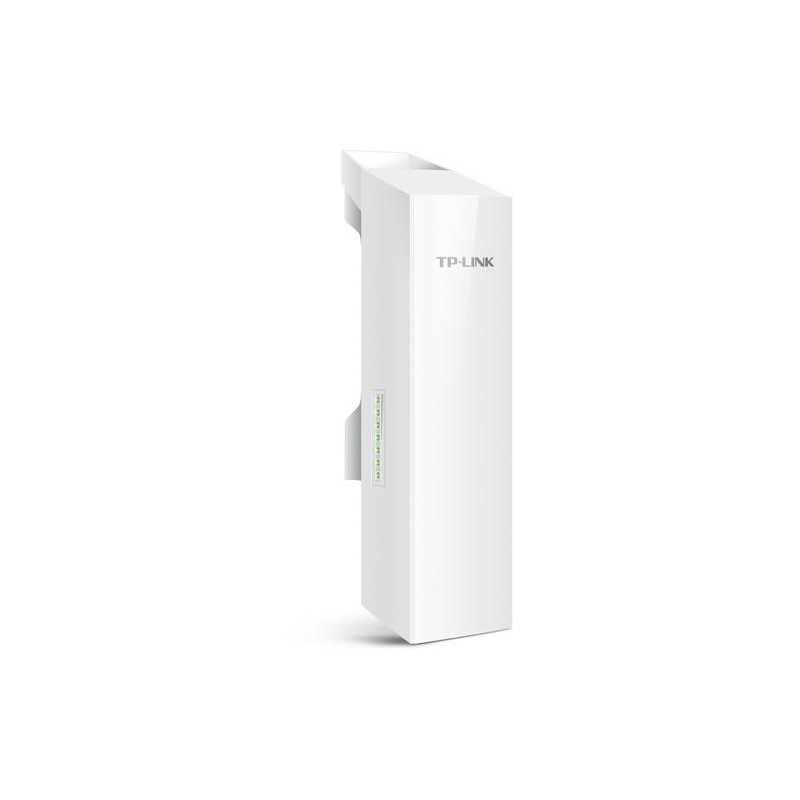

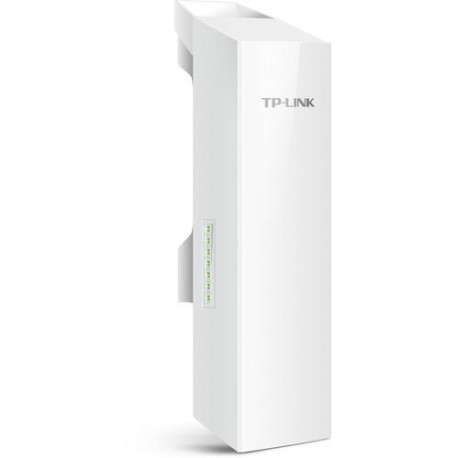

TP-Link CPE510 Outdoor 5GHz 300Mbps

TP-Link CPE510 Outdoor 5GHz 300Mbps

PŘEHLED
* Vestavěná 13dBi 2x2 duální polarizovaná směrová anténa MIMO
* Nastavitelný vysílací výkon od 0 do 27 dBm/500mW
* Optimalizace na úrovni systému pro bezdrátový přenos do vzdálenosti více než 15 km
* Technologie TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) zlepšuje výkon zařízení co se týče propustnosti, kapacity a latence, ideální pro aplikace PTMP
* Centralizovaný systém správy – řízení Pharos
* Provozní režimy AP / Klient / AP směrovač / Směrovač AP klienta (WISP)
* Pasivní PoE adaptér podporuje napájení přes Ethernet až na 60 metrů a umožňuje vzdálené resetování zařízení


SPECIFIKACE
HARDWAROVÉ FUNKCE
Processor
* Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc

Memory
* 64MB DDR2 RAM, 8MB Flash

Rozhraní
* 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
* 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
* 1 Grounding Terminal
* 1 Reset Button

Rozměry (š*h*v)
* 224 x 79 x 60 mm

Typ antény
* Built-in 13dBi 2x2 Dual-polarized Directional Antenna
* Beam Width: 45° (H-Plane) / 30° (E-Plane)
* Note: For more details, please refer to datasheet

Ochrana
* 15KV ESD Protection
* 6000V Lightning Protection

Spotřeba
* 13 Watts Max
* Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Napájení
* Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
* Voltage range: 16-27VDC

Enclosure
* Outdoor ASA stabilized plastic material
* IPX5 waterproof Certification

FUNKCE BEZDRÁTOVÉ SÍTĚ
Standardy bezdrátové sítě
* IEEE 802.11a/n (with Pharos MAXtream disabled)

Proprietary Protocol
* TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds
* Up to 300Mbps (40MHz,Dynamic)
* Up to 144.4Mbps (20MHz,Dynamic)
* Up to 72.2Mbps (10MHz,Dynamic)
* Up to 36.1Mbps (5MHz,Dynamic)

Frekvence
* 5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Citlivost příjmu
* 802.11a:
* 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
* 802.11n:
* MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
* MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
* MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
* MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
* MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm

Transmission Power
* 27dBm/500mw (Adjustable power by 1dBm)
* Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWAROVÉ FUNKCE
Wireless Configurations
* Pharos MAXtream TDMA Technology
* 802.11a/n Modes
* Selectable Channel Width: 5/10/20/40MHz
* Automatic Channel Selection
* Transmission Power Control
* Dynamic Frequency Selection (DFS)
* WDS Enable/Disable
* Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
* SSID Broadcast Enable/Disable
* Multi-SSID with VLAN Tagging (AP mode only)
* Distance/ACK Timeout Setting
* Wireless MAC Address Filter
* Wireless Advanced:
* > Beacon Interval/RTS Threshold/Fragmentation
* >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Správa
* Discovery and Remote Management via Pharos Control application
* HTTP/HTTPS Web-based management
* System Log
* SNMP Agent(v2c)
* Ping Watch Dog
* Dynamic DDNS
* SSH Server

System Tools
* Wireless Signal Quality Indicators:
* Signal Strength/Noise/Transmit CCQ/CPU/Memory
* Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
* Spectrum Analyzer
* Speed Test
* Ping
* Traceroute

System-level Optimizations
* Optimized IGMP Snooping/Proxy for multicast applications
* Hardware watch dog

JINÉ
Certifikace
* CE, FCC, RoHS, IPX5

Obsah balení
* Outdoor Wireless CPE
* 24V 1A Passive PoE Adapter
* Pole Mountin
